LG 75UH5E Signage Display Digital signage flat panel 190.5 cm (75") LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS
SKU
LG75UH5E
Login for pricing
Out Of Stock - Contact for availability
75", 3840 x 2160, 500 cd/m², HDMIб DVI-D, USB, Rj-45, RS232C, VESA 600 x 400, 240 W, 1682.4 x 960.3 x 57.9 mm
- Brightness(Typ.) : 500 cd/m2
- Bezel : 14.9 mm (Even)
- Depth : 57.9 mm
- Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker(10W+10W)
| HD type | 4K Ultra HD |
|---|---|
| Display Technology | LED |
| Display brightness | 500cd/m² |
| Product design | Digital signage flat panel |
| SKU | LG75UH5E |
| EAN | 8806098292226 |
| Manufacturer | LG |
| Availability | Out of Stock |
| PDF URLs |
View PDF |
True Colour, Immersive View
The UH5E with IPS panels allow you to enjoy lifelike picture quality with minimal variation from wide viewing angles.
Featuring excellent consistency in colour temperature and less change in contrast, LG IPS panels boast excellent image reproduction.

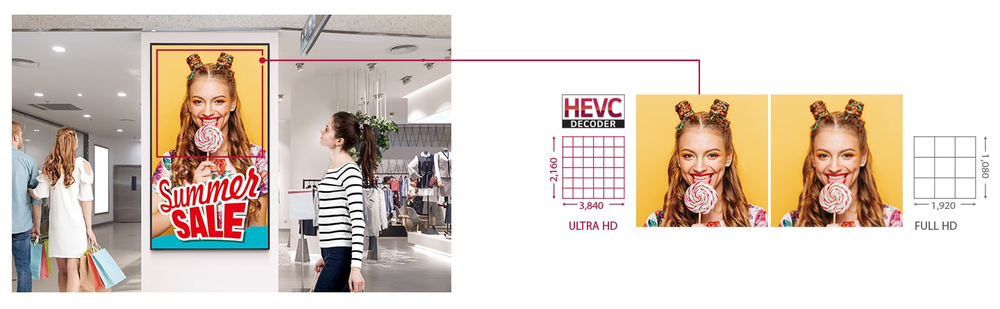

Vivid Colour Details with Ultra HD
The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).

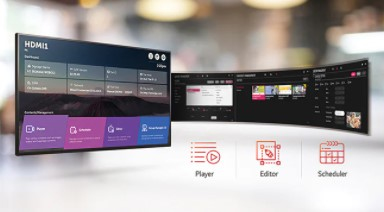

Easy Content Management
The embedded CMS(Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

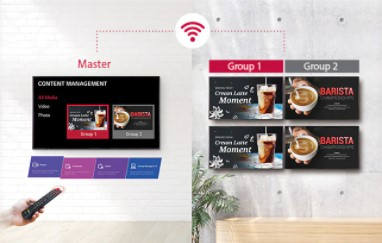

Group Manager
Content can be created and distributed to multiple signage screens by one master display, without the need for a dedicated PC or server. 1)

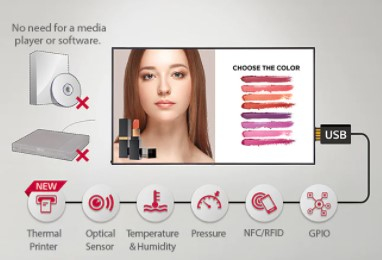

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in.
Split Screen with PBP or PIP
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 4 divided split screen on landscape or portrait display format.
Real-Time Monitoring & Control
Through the embedded web monitoring webpage, (Control Manager*) you can control and monitor the status of displays remotely, allowing you to flexibly and rapidly respond to emergency situations anywhere.
* Network connection is required for webpage browsing

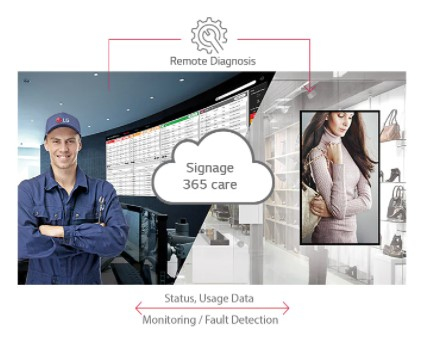

Signage 365 Care
Maintenance gets easier and faster with the optional Signage 365 Care service, an additional cloud service solution provided by LG*. Signage 365 Care remotely manages status of displays in your workspaces for fault diagnosis and remote services, helping ensure the stable operation of your business.
Real-Time Promotion via Beacon*
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
*Beacon mobile app required
Wireless Solution
Wireless Access Point
The UH5E series operates as a virtual router which can be a wireless access point for mobile devices.

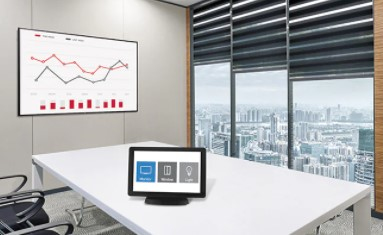

Partner Compatibility
Compatibility with AV Control System
The UH5E series has Crestron Connected Certification, a function and network based control system that is dedicated to meeting rooms and that meets a growing need in the corporate meeting space market.
Compatibility with Video Conference System
For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control1) for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

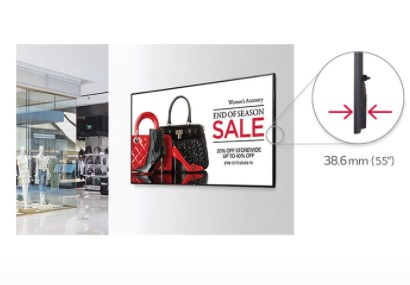

Slim and Tidy in Appearance
Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.
Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers1), giving advertisements greater impact.
Vibrant Colors and Powerful Performance Bring Content
With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.
With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.
| Display | |
|---|---|
| Touchscreen | No |
| Display technology | LED |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 6 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Panel life | 50000 h |
| Native aspect ratio | 16:9 |
| Ports & interfaces | |
| USB port | Yes |
| RS-232C | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 2 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (bottom) | 1.49 cm |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Performance | |
| On Screen Display (OSD) | Yes |
| Automatic brightness control | Yes |
| Wi-Fi | Yes |
| Panel life | 50000 h |
| Power | |
| Power consumption (typical) | 240 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Operating system installed | WebOS |
| Internal memory | 8 GB |
| Weight & dimensions | |
|---|---|
| Width | 1682.4 mm |
| Depth | 57.9 mm |
| Height | 960.3 mm |
| Weight | 41.5 kg |
| Packaging data | |
| Package width | 1816 mm |
| Package depth | 228 mm |
| Package height | 1123 mm |
| Package weight | 49 kg |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Technical details | |
| VESA mounting | Yes |
| Sustainability certificates | ENERGY STAR |
| Thin Client | |
| Operating system installed | WebOS |
| Internal memory | 8 GB |
| Other features | |
| Wi-Fi | Yes |
| Display technology | LED |
| Bezel width (top) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (bottom) | 1.49 cm |
